Beyond a superior design, what makes a CATCH exceptional is our selection of the highest-quality components and materials from the best manufacturers. Our customers expect the best—and we deliver!

Precision-Engineered Fiberglass Construction

All fiberglass components are computer-designed, CNC cut, and engineered for fit, finish, and durability. Each part is vacuum infused with a vinyl ester epoxy blend resin or vinyl ester resin. State-of-the-art materials and design support durability and passenger comfort. This combination of materials and design helps absorb energy and sound, which improves the experience for passengers.

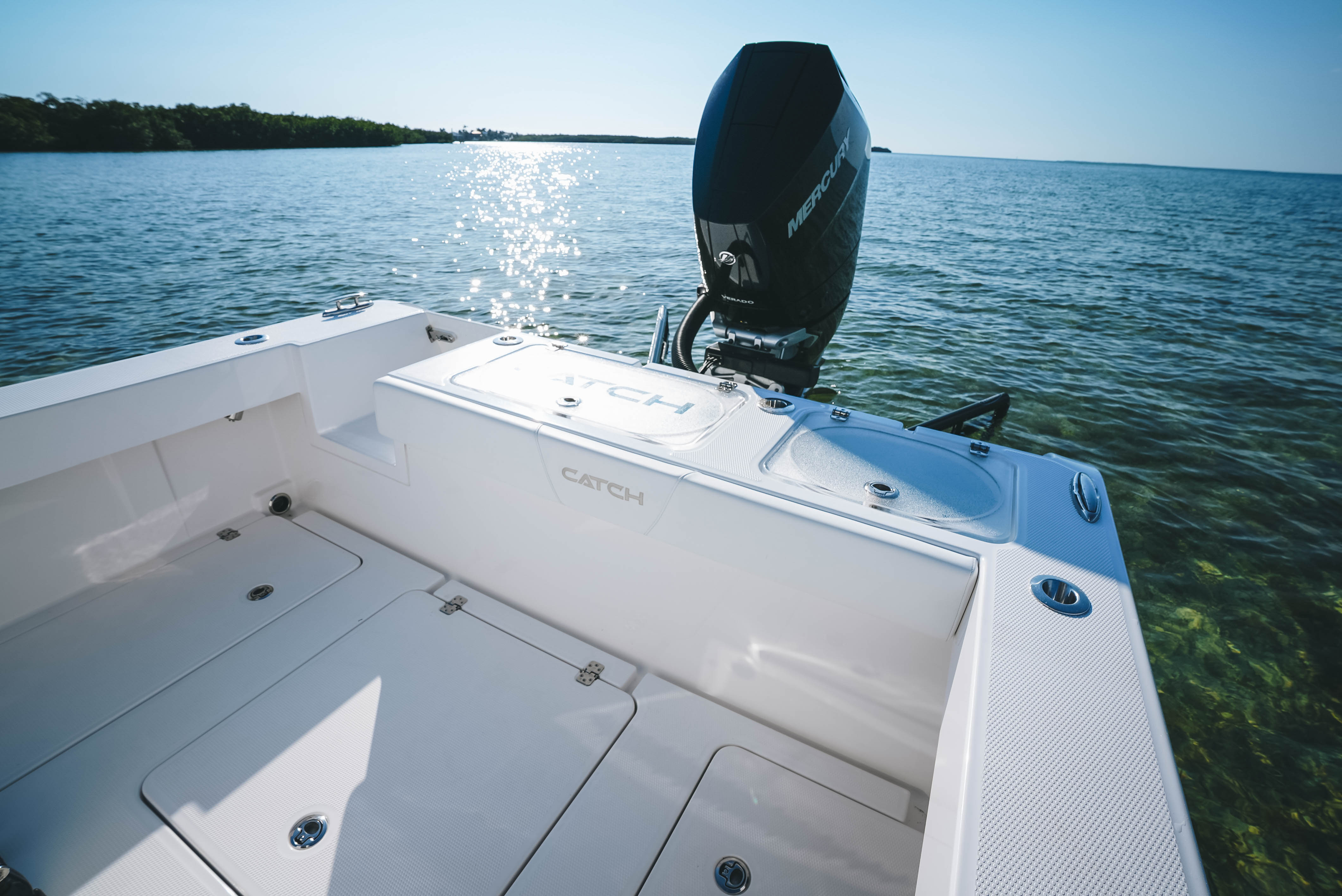

Powerful & Efficient Mercury Engines

• Mercury Verado V10 425 hp engine is standard
• Digital throttle, digital shift, and digital steering are standard
• The V10 425hp engine comes with a high capacity 150-amp alternator
• The option for twin Mercury V6 225hp engines is available

High Grade Aluminum Fuel Tank

Thanks to the custom hull design's fuel efficiency, the standard 107-gallon fuel tank provides ample capacity. Each tank is constructed from 3/16" high-grade aluminum and coated with Targuard Coal Epoxy for enhanced durability. The tank is securely installed without the use of expanding foam, thereby minimizing the risk of moisture retention and potential corrosion.

The option for additional fuel is available.

Hydraulic Jack Plate for Shallow Water Performance

Because Catch 27 is designed to run shallow, it comes standard with a hydraulic jack plate pre-drilled for mounting Power-Pole shallow water anchors. Paddle-style switches on both steering wheels control the jack plate.

ZipWake Interceptor Blades

ZipWake Interceptor Blades, 600mm (23.6 in) wide, offer superior trim control compared to standard tabs, providing greater lift and reduced drag. Their dynamic system handles pitch, roll, trim, and turn angle automatically or manually for optimal comfort and efficiency.

Diver-Friendly Dive Platform

Spacious dive platform with a dive door, a hideaway “T”-style boarding ladder and two 316 stainless steel grab handles. The elimination of an engine well creates a flat, full width, non-skid surface for enhanced safety and space.

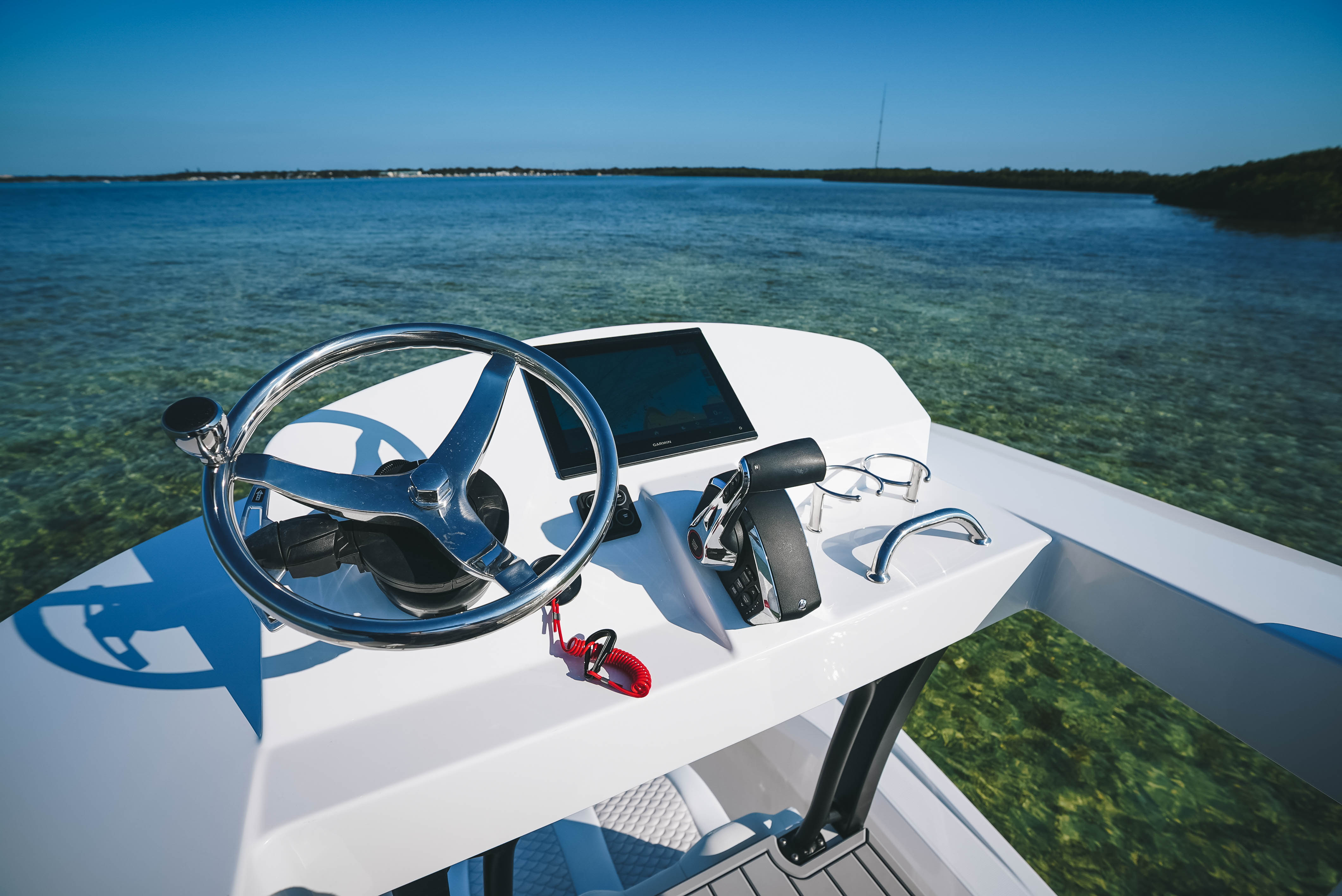

Modern Sleek Multi-Function Hardtop with Upper Helm Station

• A sleek, spacious upper helm station accommodates two people, with dashboard space for a 12-inch Multi-Function Display.
• Upper helm is easily accessed via recessed steps flush with the console.
• Hardtop accommodates a VHF radio, stereo, six stereo speakers, downlights, spreader lights, light bars, antennas, and outriggers.
• Modern “D”-shaped aluminum pipe supports the second-station hardtop. The pipe flushed into the console provides a streamlined look while maximizing walkway space. Standard powder coating in white, black, or gray.
• Aircraft-grade acrylic windshield installed on the rear legs of the console, coated with an aviation-grade glass coating for scratch resistance and nighttime clarity. Positioned to block weather while maintaining easy access to the upper helm.
• Designed to remain well below roadway trailering height restrictions.

Modern Ergonomic Helm Design with Premium Helm Bench Seat & Matching Sunbrella Upholstery Throughout

• The design mimics what the US Navy developed to keep Navy Seals safe in small attack vessels.
• The console enhances the captain’s line of sight, allowing safe navigation for operators between 5 feet tall and 6 feet 6 inches tall.
• Captain and passenger are seated upright with the controls in easy reach for comfort and safety.
• High-quality helm bench seat with fold-up armrests, fold-up bolsters, mounted on a seat slide for comfort and safety, is made with all stainless-steel components and upholstered in premium durable Sunbrella material.
• Seat cushions on the upper station, forward console lounge, and cockpit bolsters are upholstered in matching Sunbrella material for durability and comfort.
• The dashboard is designed to accommodate large Multi-Function Displays, providing optimal visibility and accessibility.
• Sport-style stainless steel steering wheels with finger grips and control knobs at both helms.
• Helm seating box comes with two tackle storage centers and a slide-out premium fiberglass cooler by Frigid Rigid. Your choice of premium rod holders and/or cupholders in the top of the seat box.

Modern Ergonomic Helm Design with Premium Helm Bench Seat & Matching Sunbrella Upholstery Throughout

• The design mimics what the US Navy developed to keep Navy Seals safe in small attack vessels.
• The console enhances the captain’s line of sight, allowing safe navigation for operators between 5 feet tall and 6 feet 6 inches tall.
• Captain and passenger are seated upright with the controls in easy reach for comfort and safety.
• High-quality helm bench seat with fold-up armrests, fold-up bolsters, mounted on a seat slide for comfort and safety, is made with all stainless-steel components and upholstered in premium durable Sunbrella material.
• Seat cushions on the upper station, forward console lounge, and cockpit bolsters are upholstered in matching Sunbrella material for durability and comfort.
• The dashboard is designed to accommodate large Multi-Function Displays, providing optimal visibility and accessibility.
• Sport-style stainless steel steering wheels with finger grips and control knobs at both helms.
• Helm seating box comes with two tackle storage centers and a slide-out premium fiberglass cooler by Frigid Rigid. Your choice of premium rod holders and/or cupholders in the top of the seat box.

Comfortable Forward Console Lounge

A spacious lounge seat for two in front of the console ergonomically designed for comfort with folding armrests.

Flexible Cockpit Rear Wall Configuration

Rear cockpit wall features a bolster pad and can be customized with options like a fold-down bench seat, a dive tank rack or speargun rack.

Large Live Wells with Premium Plumbing

• 39-gallon and 20-gallon live wells in the transom, featuring premium Gemlux plumbing to adjust water levels or pressurize the wells to protect bait. The extra wide acrylic lids let in light, while non-skid surfaces on the lids double as a rear casting platform you can stand on.
• Light blue gel coat interior helps calm the bait.
• Lumitec LED lighting inside the live wells.
• Large well openings facilitate clearing cast nets and storing 5-gallon buckets when not in use.
• Stainless steel seacocks, thru-hull ball valves by Groco with oversized 1-1/2 drain hose.
• All hoses are fitted with double heavy duty 316 stainless steel hose clamps for safety and reliability.

Freshwater Washdown System

High-pressure pump, 18-gallon aluminum water tank with Targuard Coal Epoxy coating for corrosion resistance. Glenndinning’s retractable hose reel provides a 20-foot hose for clutter-free use.

Seawater Washdown System

High-pressure seawater pump with a retractable 20-foot hose on a Glenndinning hose reel, ensuring full deck coverage.

Premium Pumps Throughout

• High-quality Rule 1500 bilge pump paired with an Ultra bilge pump float switch. Ultra switches are by far most reliable float switches on the market.
• Two 1250 gph live well pumps with easy remove and replace motor cartridges.
• Two Jabsco diaphragm pumps for pumping out the cockpit fish boxes. Diaphragm pumps are superior to macerator pumps.

Easy Access to Mechanical Systems

Large lazarette hatch on the cockpit floor for easy access to mechanical and plumbing components, arranged for simple maintenance.

Large Insulated Fish Boxes

• Two large 60 inch long, insulated fish boxes/storage compartments in the aft cockpit floor, draining to durable diaphragm pumps.
• Large, insulated fish/coffin box under the spacious 2-person lounge seat in front of the console drains overboard.
• Fish box drains have premium Yeti cooler style plugs.

Fisherman-Oriented Storage Solutions

• Designed with fishermen in mind, our storage compartments in the console, forward floor, and forward step are sized to fit 5-gallon buckets—ideal for storing cleaning supplies, tackle, cast nets, and trash.
• Large under-gunnel compartment on the forward starboard is ideal for life jackets with quick access in an emergency.

Under-Gunnel Rod Storage

Under-gunnel storage for up to nine fishing rods, gaffs, a boat hook, or a long scrub brush. Optionally, these can be equipped with oversized hooks for spearguns.

Under-Gunnel Trolling Motor Storage – An Industry First!

Exclusive to Catch Boatworks, the trolling motor stores neatly in a compartment under the gunnel clearing the bow for unobstructed visibility and access.

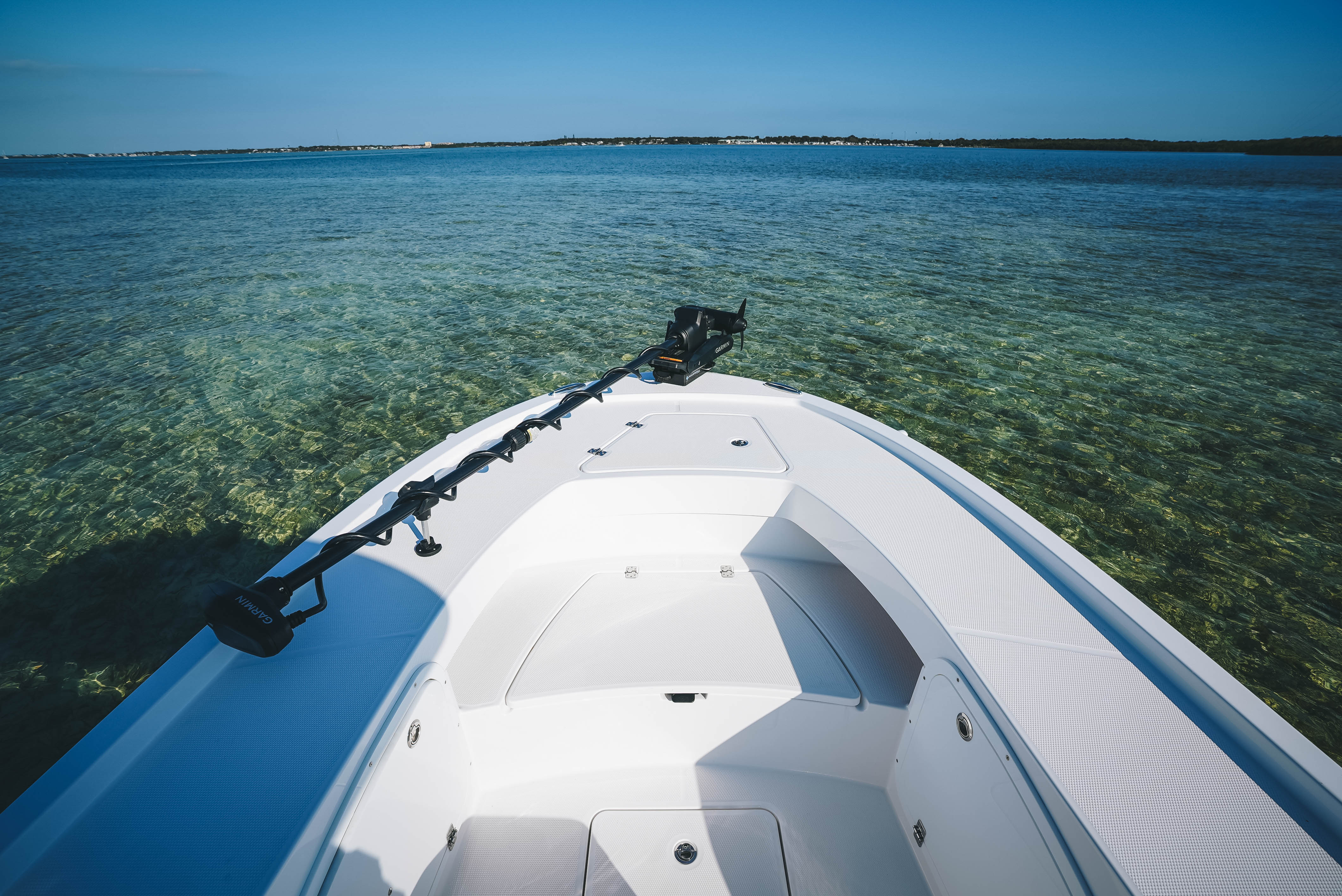

Seamless Anchor Windlass & Trolling Motor Integration

• Bow area is designed for smooth windlass and trolling motor operation, with an access hatch that opens without interference from the trolling motor.
• Fold up anchor pulpit tucks the anchor up close to the hull. It looks great and prevents fishing line tangles by not having the anchor sticking out from the bow.
• Stainless-steel anchor windlass with a polished Stainless-steel Delta-style anchor, 8 feet of stainless-steel chain, and 150 feet of anchor line. Longer options available.

High Quality 316 Stainless-Steel Rod Holders & Hardware

• All hardware is made from high quality marine grade 316 stainless steel by Gemlux.
• Eight premium screwless rod holders in the gunnel and transom. The entire gunnel has reinforced coring for additional installations.
• Ten flush-mounted screwless rod holders on the hardtop.
• Six flush-mounted pop-up cleats.
• Premium friction hinges hold hatches open without gas shocks.
• Friction hinges do eventually wear out so we thought ahead for ease of replacement. Under the fiberglass, embedded into the laminate is a material called Aquasteel. Aquasteel is a dense corrosion free composite with the same strength as metal. We use machine screws threaded into the Aquatsteel to hold the hinges. Simply unscrew the machine screws and replace your hinge. No struggling to get to nuts on the backside.
• Premium stainless-steel latches secure all hatches and doors.
• Four premium cupholders (two at each helm) designed to fit large Yeti cups and slim cans without rattling.

State-of-the-Art Wiring & Electrical System

• The electrical system is thoughtfully rigged by Kraken Marine Electronics, one of the best marine electronics companies in the business.
• High quality tin coated marine-grade wire with waterproof connectors and labeled circuits for straightforward maintenance.
• The highest quality circuit panels and switches from Egis Mobile Electric create a concise low maintenance system.
• Factory pre-wired for all available options, including a trolling motor and power poles.

State-of-the-Art Digital Switching

Take full control of your pumps, lighting, and essential systems with an intuitive menu on your multi-function display. Digital switching enhances reliability over traditional analog switches while streamlining operation. For added safety and peace of mind, manual override backups ensure you're always in command.

Lithium Batteries

Premium lithium batteries from one of the best battery companies, Abyss Battery. High reserve capacity and ample cranking amps make Abyss lithium batteries a great choice.

Lithium Battery Chargers for 12-Volt and 36-Volt

• Abyss Battery provides an on-board marine charger that charges the 12-volt house battery, the 12- volt lithium engine battery and the 36-volt trolling motor battery when plugged into shore power.
• If you choose the option of a trolling motor, we install a 36-volt onboard alternator charger. It automatically charges the trolling motor battery when the engine is running. It works great with Mercury’s 150-amp high-capacity alternator.

Prewired for Trolling Motor

Prewired for a trolling motor including circuit protection and wires pulled to the bow.

Prewired for Electric Reels

Prewired for two electric reel outlets with circuit protection and wires pulled under the gunnels in the cockpit.

Advanced LED Lighting

• Low profile LED red & green navigation bow lights positioned below deck level to prevent brightness and glare from blinding the captain’s night vision
• Lumitec Contour LED anchor/navigation light on the hardtop
• Lumitec downlight in the hardtop at the lower helm
• Lumitec aft spreader lights flush mounted in the hardtop
• Lumitec LED lighting in the live wells
• Two Lumitec LED underwater lights on the transom
• LED lighting in the JL Audio speakers
• LED under gunnel lighting
• 10” LED light bar / spotlight on the hardtop by Plash LED

Premium Electronics Package Standard

At The Lower Helm:

• Two Garmin 16-inch 1643xsv Multi-Funchion Displays (MFD’s). The “xsv” units have a port for the transducer. Two xsv units are standard to allow the option of an additional transducer for side scan. A 2nd transducer is optional.
• Garmin 1kW midband CHIRP GT17-M Thru Hull Transducer
• Garmin 215 VHF with Shakespeare antenna on a stainless steel mount
• Fusion MS-RA770 Apollo Marine Stereo
• Garmin / JL Audio marine amplifier
• Six JL Audio speakers in the hardtop positioned up high for maximum sound quality
• Mercury Autopilot controlled in the MFD’s
• Digital Mercury steering with tilt helm
• Paddle style jack plate controls under the steering wheel
• Digital Mercury Controls
• Four digital switches on the dash for the most critical circuits – Nav light, Spot Light, Bilge Pump and Horn. All other switches are digital on screen in the MFD’s
• Easy to use computer mouse style controller for the ZipWake interceptors.

At the Upper Helm:

• A Garmin 12-inch, 1243 MFD.
• Digital Mercury steering with tilt helm
• Paddle style jack plate controls under the steering wheel
• Digital Mercury Controls
• Four digital switches on the dash for the most critical circuits – Nav light, Spot Light, Bilge Pump and Horn. All other switches are on screen in the MFD’s.
• Double 316 stainless steel cupholders
• A grab handle for the passenger

All components are networked together. The autopilot, stereo, lighting, pumps, windlass and all digital switching can be controlled from any of the three MFD’s. If you get the optional Garmin trolling motor, it can also be controlled from the MFD’s.

Dry-Deck Self-Bailing Deck Design

Deck gutters direct water to scuppers with durable stainless-steel flappers. Scuppers are well above the waterline, preventing backflow and water accumulation on the decks.

Superior Double-Gasket Hatch Seals

A superior dual-sealing system ensures compartments remain dry and secure.

Premium Non-Skid Decking

Mini-oval pattern non-skid surfaces, stylish, easy to clean, and UL-listed for safety.

Large Spacious Center Console

Plenty of room to be used as a changing room or a head with the option of installing a Porta Potty.
